Description
Application Scenario
Residential
Workplace
Retailer
Private Portable
Benefits
Temperature detection fault automatic repair charge
High protection level to IP66
Easy to use, simply plug-in and charge
Reservation OTA continued to upgrade
Specifications
| Items | Parameters | ||
| Electrical | |||
| Model | LAC-16A-S1M2EN/LAC-32A-S1M2EN | LAC-16A-T1M2EN/LAC-32A-T1M2EN | |
| Input Rating | AC230V, 50Hz/60Hz, L+N+PE | AC400, 50Hz/60Hz, 3P+N+PE | |

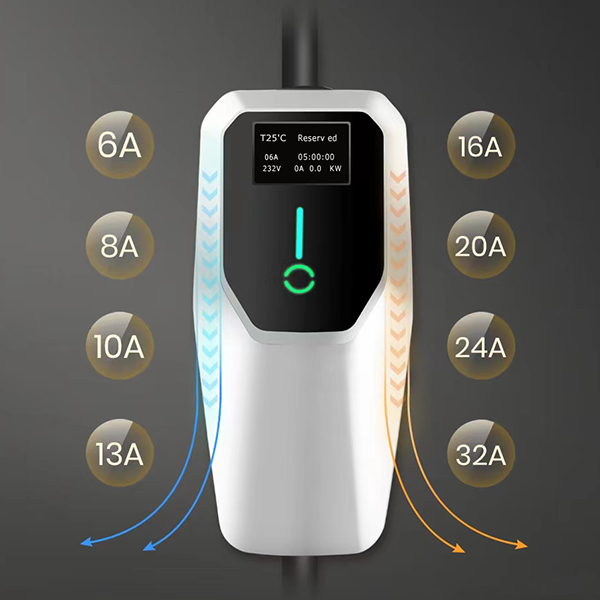

| Output Current | 6A/8A/10A/13A/16A/32A | ||
| Output Power | 3.5kW max. 7kW max. | 11kW max. 22kW max. | |
| Internal RCD | Type A AC 20/30mA +DC 6mA (Type B) | ||
| Interface and Control | |||
| Display | LCD display | ||
| Power Plug Interface | Schuko/UK/AU/NEMA/CEE or customized | ||
| Charging Connector Type | Type1, Type2, GBT | ||
| Environment | |||
| Enclosure Protection | IP66 | ||
| Operating Temperature | -25℃~55℃ | ||
| Storage Temperature | -30℃~85℃ | ||
| Altitude | <2000m (over 2000m de-rating power output) | ||
| Humidity | 5%~95% (No condensation) | ||
| General | |||
| Total Cable Length | 5m standard (other length is optional) | ||
| Control Box Dimension | 226mm(H)x105mm(W)x64mm(D) | ||
| Weight | ≤2.2kg | ||
| Safety and Regulation | |||
| Uv Protection | TPU | ||
| Safety Protection | Leakage protection, over temperature protection, lightning protection, over current protection, automatic power failure, under voltage protection, over voltage protection, CP failure. | ||
| Standard | IEC 61851, IEC/EN 62752, EN 62196 | ||
Get Quote
Ready to power up your electric journey? Get a personalized quote today and embrace the future of efficient and sustainable EV charging with Luobinsen!
