Commercial
AC Charger
Experience the evolution of charging with Luobinsen’s AC EV Charger, your Level 2 car charger solution for residential and workplace use. Unleash convenience and reliability with multi-layer protection, a compact design, and easy installation. Perfect for residential use, this advanced AC EV charger for home ensures more than 10,000 charging connector cycles, guaranteeing lasting performance. Transform your home into a charging hub with our state-of-the-art technology, redefining the way you power your electric journey.

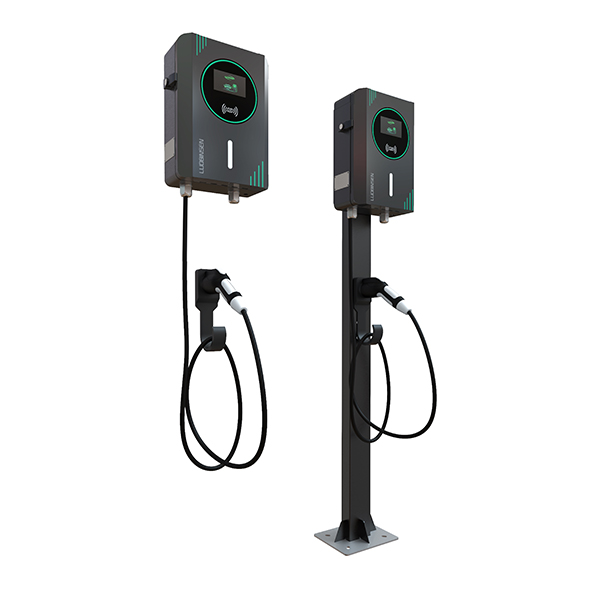

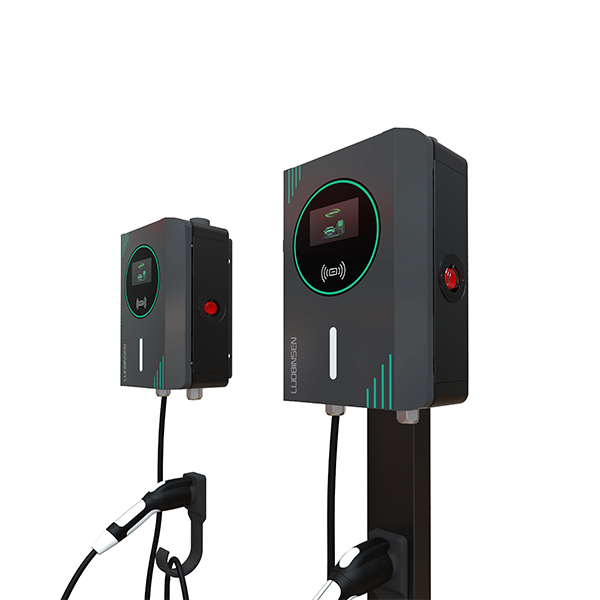

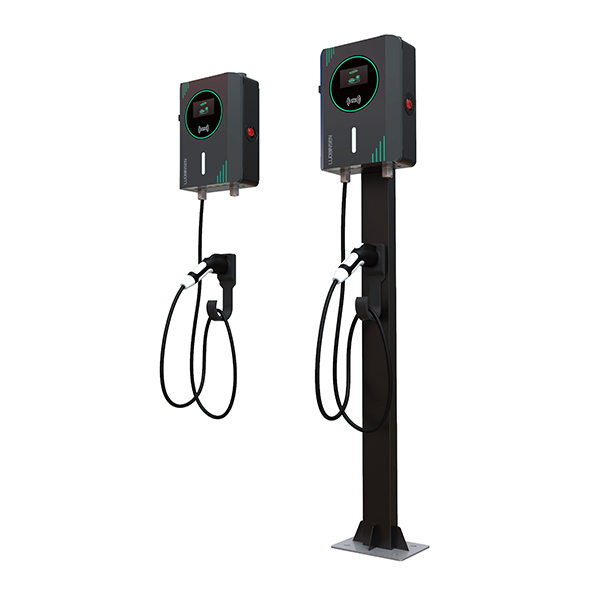

Wall/Column fixing mode optional
Compact and tough design
Easy to install, easy to maintain
More than 10000 times charging connector plug in-out test
| Electrical | |
|---|---|
| Output Power | 7kW Max. 11kW Max. 22kW Max. |
| Input Rating | AC220V±15%, 50/60Hz, L+N+PE AC380V±15%, 50/60Hz, 3P+N+PE |
| Output Voltage | AC220V AC380V |
| Output Current | Max 200A per connector, Max 200A total (60kW) / Max 260A total (80kW) / Max 400A total (120kW) |
| Full Load Power Factor | 32A Max. 16A Max. 32A Max. |
| Interface and Control | |
|---|---|
| Display | 4.3'' inch display screen |
| Authentication | RFID: ISO/IEC14443A/B |
| Network Connection | Ethernet/4G, WiFi (optional) |
| Platform Communication | OCPP 1.6J/OCPP 2.0.1 |
| Charging Connection Type | Type1, Type2, GBT |
| Environment | |
|---|---|
| Enclosure Rating | IP55 |
| Operating Temperature | -30℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Altitude | <2000m |
| Humidity | 5%~95% (no condensation) |
| General | |
|---|---|
| Charging Cable | 3.5m (other length is optional) |
| Installation Mode | Wall Box, Column Pedestal |
| Dimension (WxDxH) | 380×280×140mm |
| Cooling Method | Natural cooling |
| Shell Material | Aluminum zinc coating |
| Safety and Regulation | |
|---|---|
| Safety Protection | Leakage protection, Over voltage, Over current, Phase loss, Communication abnormality, Emergency stop, etc. |
| Standard | IEC61851, IEC62196, GBT 20234, GBT27930 |
